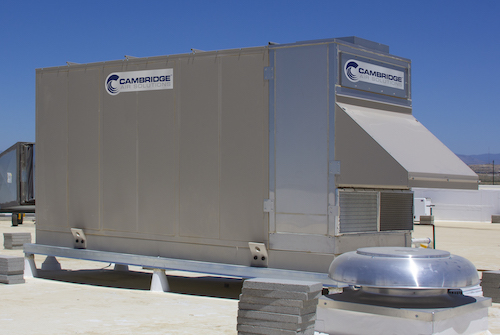

Cambridge Air Solutions ESC-Series

THE ESC-SERIES: BUILT TO COOL WAREHOUSES AND FACTORIES

A greener alternative to traditional DX cooling systems, evaporative cooling reduces energy consumption by 60-80%.



With indirect evaporative cooling, leaders can maintain a temperature controlled work environment for their team by utilizing Cambridge’s ESC-Series.

The ESC-Series evaporative cooling unit is a semi-custom fabricated air handler that can utilize direct (DEC), indirect (IEC) evaporative cooling, or a combination of both indirect/direct (2-Stage) evaporative cooling to meet specific usage and dimensional requirements. Heating options are also available. The evaporative cooling unit uses 100% outside air to provide tempered make-up air and building cooling. The ESC-Series unit is designed for industrial, commercial, and institutional buildings needing better indoor air quality without the equipment or operating costs associated with mechanical cooling.

*Lead Times are based on average capacity and standardization and will be confirmed by your local representative.

FEATURES OF AN ESC-SERIES UNIT

INDIRECT

  • Utilizes indirect plate exchanger
  • Compact polymer plate exchanger
  • Typical efficiencies 40-60%
  • Low static pressure drop
  • Outside air used for vaporizer air
  • Energy recovery
  • Built to suit applications

INDIRECT / DIRECT

  • Sensible cooling with adiabatic cooling
  • Uses plate exchanger with waste air stream and direct evaporative media
  • Saturation efficiency up to 120%
  • In drier climates can achieve discharge temperatures in the mid to high 50’s
  • EER above 30 in high wet bulb areas
  • EER near 100 in drier areas
  • No mechanical cooling required



Product Flyer



SPEC & TECH MANUALS

AIR SOLUTIONS Q&A and TOUR

Cambridge's Air Solutions Tours are customized to answer your questions regarding how our technology can help you address your facility's cooling challenges. If you have questions about our tours, you can get in touch with our Sales Development Representative. Do you want to learn more about the commercial and industrial uses of our evaporative cooling technology or the ESC-Series evaporative cooling system? Schedule an in-person or virtual tour today!

Learn More

CAMBRIDGE ESC-SERIES DIRECT EVAPORATIVE AIRFLOW RANGES

ESC4L: 2,400 – 4,000 CFM | ESC6L: 3,600 – 6,000 CFM | ESC4: 4,200 – 7,000 CFM | ESC5: 6,125 – 9,188 CFM | ESC6: 6,300 – 10,500 CFM |ESC8: 8,400 – 14,000 CFM | ESC10: 10,5000 – 17,500 CFM | ESC12: 12,600 – 21,000 CFM | ESC14: 14,400 – 24,000 CFM | ESC2-8: 16,800 – 28,000 CFM | ESC2-10: 21,000 – 35,000 CFM | ESC2-12: 25,200 – 42,000 CFM | ESC2-16: 33,600 – 56,000 CFM

SPECIFICATIONS - BASE UNIT

AIRFLOW RANGES: 2,450 - 58,800 CFM (see model numbers above)
MOUNTING: Roof Top, Pad Mount
DISCHARGE:  Down Blast, Up Blast, Horizontal Blast
VOLTAGE: 460/3/60, 230/3/60, 208/3/60
CASING / FINISH: Single Wall Galvanized, Single Wall Stainless, Double Wall Galvanized, Double Wall Stainless
PAINT: 1000 hour salt spray

AVAILABLE OPTIONS / ACCESSORIES

DIRECT EVAPORATIVE SECTION: 12” CELdek,18” CELdek, 12” GLASdek
INDIRECT EVAPORATIVE SECTION
ENERGY RECOVERY: Energy recovery MUA, Energy recovery economizer
COOLING COIL SECTION: 4 row CW or DX coil, 6 row CW or DX coil
HOT WATER COIL SECTION: 2 Row Hot Water Coil
GAS HEATING SECTION: Indirect fired
MIXING BOX: O/A &R/A damper with 2-pos. Actuator, O/A &R/A damper with Modulating Actuator
CURB: Flat 14" or Flat 24"
RAIL STANDS: 14" or 24"
MOTOR TYPE: ODP, TEFC
NEMA 3R VFD: Without bypass
FAN TYPE: Forward Curved, Backward Inclined, Plenum
DRIVES: 1.2 Fixed, 1.2 Variable, 1.5 Fixed, 1.5 Variable, Direct Drive
INTAKE: Screen, Louver, Hood
FILTERS:  2” Aluminum, 2” MERV 8, 2” MERV 13
REMOTE CONTROL PANEL
PROGRAMMABLE ROOM THERMOSTAT
INSULATION: 2” thick, 2.8# density, mineral wool insulation providing R8 insulating factor (Insulation directly in the airstream is not acceptable)
